Using a Wire Gauge

See the tabs below for all products and tools used in this technique, plus any additional tips that may be helpful to you!

Measure the thickness of wire quickly and accurately every time with this handy tool.
Inspiration Level
Approximate Finished Length3mpty
Printer-Friendly
Tip 13mpty
Tip 23mpty
Tip 33mpty
Tip 43mpty
Tip 53mpty
Tip 63mpty
Tip 73mpty
Tip 83mpty
Tip 93mpty
Tip 103mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty
3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

3mpty

Step 1

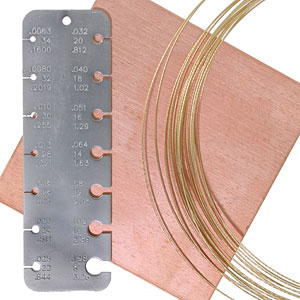

The wire gauge measures 34 to 8 gauge wire and sheet metal. The slots are used to measure the gauge. The numbers next to each slot will tell you the gauge in inches, gauge and millimeters.

Step 2

To measure wire, slide the wire into a slot. In this case the wire fits loosely in the slot so it is not 22 gauge wire.

Step 3

Slide the wire into a smaller slot. In this case the wire does not fit into the slot so the wire is not 26 gauge.

Step 4

Slide the wire into a larger slot than the one in step 3. In this case the wire fits into the slot but is a tight fit. This means that our wire is 24 gauge.

Step 5

To measure sheet metal, slide the sheet metal into a slot. In this case the sheet metal fits loosely in the slot so it is not 18 gauge sheet.

Step 6

Slide the sheet metal into a smaller slot. In this case the sheet metal does not fit into the slot so it is not 22 gauge sheet.

Step 7

Slide the sheet metal into a larger slot. In this case the sheet metal fits into the slot and but it is a tight fit. This meansthat our sheet metal is 20 gauge sheet.
